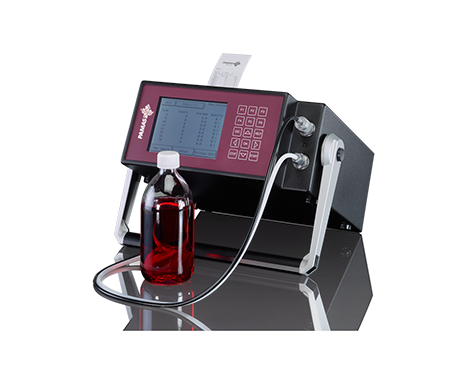

PAMAS S4031 most versatile R & D and Test Lab Liquid Particle counter

The PAMAS S4031 is a portable liquid particle counter for liquids. It is used for research and standard measurements in laboratories and test institutes and is adequate for indoor and field applications. The instrument can be applied for batch sampling or for online measurements. A wear resistant ceramic piston pump guarantees a constant flow. With a simple-to-use touch screen user interface, operation is easy and intuitive. Up to 32 free adjustable size channels may be selected and stored in the system. The system is equipped with an integrated battery for more than 3 hours operation and data storage of more than 4000 measurements. Real time sample measurement data can be printed during the analysis and also be revisited and printed at anytime at a later date.

  • Water
  • Suspensions
  • Cleaning fluids
  • Sea and brackish water
  • Korrosive fluids
  • Hydraulic Oil
  • Turbine and insulation oils
  • Gear and motor oils
  • Fuels
  • Phosphate ester based hydraulic fluids
  • Water based hydraulic fluids

  • Robust & convenient design.
  • Lightweight only 8 kg.
  • Customizable measurement analysis settings.
  • Intuitive operation via touch screen.
  • Automatic sample flow and volume control by wear resistant ceramic piston pump.
  • 32 freely adjustable size channels.
  • Measurement from pressureless up to 6 bar/420 bar system pressure, depending on the version.
  • Use of any sample vessel.
  • Internal data storage of more than 4,000 measurements.
  • Display of actual and saved measurement results and printed via integrated thermo printer.
  • Same measurement accuracy as a laboratory unit.
  • Multilingual menu navigation.
  • Battery running time of more than 4 hours.

  • PAMAS S4031 Standard for aqueous liquids.
  • PAMAS S4031 Seawater for Saline and brackish water.
  • PAMAS S4031 CL for corrosive liquids.
  • PAMAS S4031 Oil at up to 420 bar system pressure.
  • PAMAS S4031 Lube Oil for highly viscous oil up to 1,000 cSt.
  • PAMAS S4031 Fuel for fuels such as petrol, diesel or kerosene.
  • PAMAS S4031 Skydrol for phosphate ester based hydraulic fluids.
  • PAMAS S4031 WG for water based hydraulic fluids.

All versions are optionally available in the robust PAMAS GO housing.
