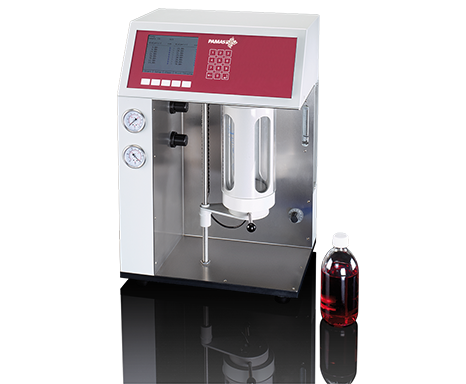

PAMAS SBSS- Research Grade Laboratory Liquid Particle Counter

Model SBSS is a research Grade Laboratory liquid particle counter for liquids with a viscosity of up to 1600 Cst with an external pressure supply and precise flow rate control.

The PAMAS SBSS is a particle measuring system for batch sampling. The PAMAS SBSS is the standard instrument used as a reference in many testing labs. The instrument may be programmed to measure a sample without the need of an operator, like pre-filling the internal dead volume, degassing the sample with vacuum, pressurising the sample for a number of measurement runs, and relieving pressure at the end. High accuracy and repeatability, fast purging and back flush possibility are the key benefits of the system.

Model SBSS Liquid Particle counter has a variant for Water Glycol testing. The PAMAS SBSS WG is a particle measuring system for bottle samples. The system is capable for the measurement of particle counts in water based hydraulic fluids (Water-Glycol) used in the off shore industry.

  • Hydraulic oils
  • Turbine and insulation oils
  • Gear and engine oils
  • Water based hydraulic fluids
  • Phosphate ester based hydraulic fluids
  • Fuels
  • Highly volatile fluids
  • Parenterals, protein solutions according to common pharmacopoeias.

  • Customisable measurement settings.
  • 16 freely adjustable size channels (32 channels upon request).
  • Pressure sampling up to 10 bar.
  • Optional vacuum cycle for sample degassing.
  • Integrated magnetic stirrer.
  • Use of any sample vessel with a max. diameter of 7 cm and a height of 18 cm.
  • Measuring volume of 1 to 1,000 ml.
  • Automatic sample flow and volume control via a stepper motor driven syringe module.
  • Interchangeable syringes with 1 ml, 10 ml and 25 ml volume.

PAMAS HCB-LD-50/50

Available size ranges:

1–200 µm (ISO 21501-3)

1–400 µm (ISO 21501-3) option on request

1–100 µm (ISO 4402)

4–70 µm(c) (ISO 11171)

Max. particle concentration: 24,000 P/ml at 25 ml/min.

Available size ranges:

1–200 µm (ISO 21501-3)

1–100 µm (ISO 4402)

4–70 µm(c) (ISO 11171)

Max. particle concentration: 120,000 P/ml at 25 ml/min.

Available size ranges:

0,5–20 µm (ISO 21501-2)

1–20 µm (ISO 4402)

1.5–25 µm(c) (ISO 11171)

Max. particle concentration: 13,000 P/ml at 10 ml/min.

ISO 11171 ISO 4402 ISO 21501-3 ISO 21501-2 USP <1788> ISO 4406
SAE AS4059 NAS 1638 GOST 17216 CHARN* GJB 420B GJB 420A
NAVAIR 01-1A-17* SAE 749D* ISO/DIS 11218.2* ASTM D7647
*in connection with PAMAS PMA software.
USP <787>** USP <788>** USP <789>** Ph. Eur. 2.9.19** JP XVI** KP X**
IP 2.5.8** BP XIII** IEC 60970 ASTM D6786 ISO 11500
**in connection with PAMAS USP software.
