MTPL- Compressed Air Testing Instrument

MTPL-HPD High Pressure Diffuser can serve two purposes, it can sample both viable and non viable from compressed air and Nitrogen.

This also helps to reduce the calibration burden, extra documentation and reduces expenses. Let us assume that each manufacturing facility has one CLiMET CI-90A or CI-95A room microbial air sampler, the same can be used for compressed air microbial sampling using high pressure diffuser and conical sampling head.

The high pressure diffuser used with the CLiMET microbial air sampler can also be used with CLiMET room air particle counter for counting particles in compressed air and Nitrogen. Two instruments thus cover for four applications. This is a net saving for CLiMET users.

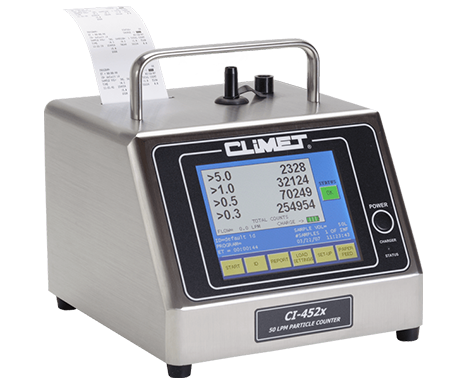

CLiMET Portable Air Particle Counter

  • Smallest & lightest.
  • Provides differential counting as required by ISO8573.
  • SS body, smooth enclosure.
  • RS232, USB, Ethernet and Various software options available.
  • Rugged - CLiMET Quality.

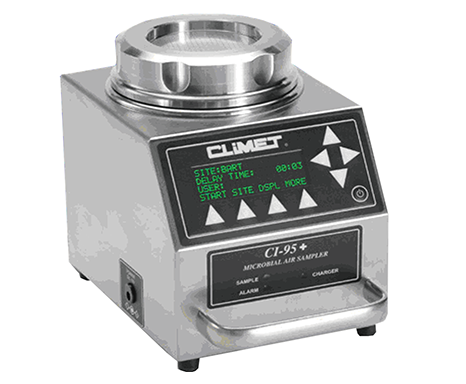

CLiMET Microbial Air Sampler with HPD

  • CLiMET CI-90A and CI-95A and the attachment are light.
  • One person can comfortably carry around in the plant.
  • It is battery operated.
  • Fittings are quick fit (push) Swagelok, very easy to handle.
  • C190-A has a label printer.

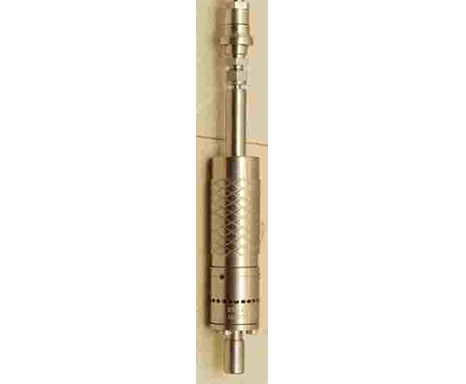

High Pressure Gas Diffuser for compressed air & Nitrogen sampling

  • SS construction.
  • Compatible with CLiMET air particle counter & microbial air sampler.
  • Range: 2-10 bar.
  • Fittings: Inlet - Swagelok fitting, male or direct input to 1/4" standard compressed air tubing.
  • Outlet - ½ inch tapered tube connection directly to special sampling head.
  • Devices directly adaptable to the High Pressure Diffuser.
  • High Pressure Diffuser directly adaptable to the compressed air source.
  • Easy to carry by single person, no complicated fixtures involved.
  • Supplied with one meter bev-a-line tube.

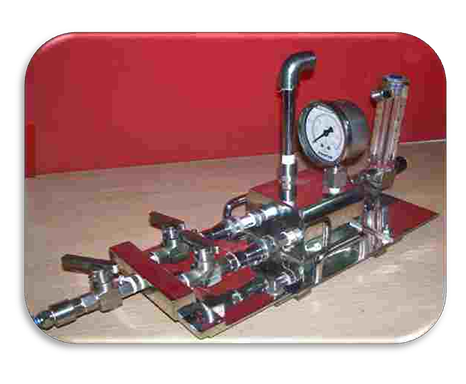

MTPL-mcas Multipurpose Compressed Air Sampler

  • All SS Construction.
  • Autoclavable
  • Initial pressure control through pressure gauge.
  • Flow adjustment through rota meter.
  • 2LPM & 100LPM rota meter supplied.
  • IQ/OQ Document.
  • Calibration certificate for pressure and flow.
  • MCAS can be used for bubbling known volume of compressed air into Peptone and test Peptone in turn for the sterility before and after bubbling.
  • MCAS can be used with GASTEC tubes for gas detection in compressed Air/Nitrogen including CO, CO2, Oil mist, NO + NO2, SO2 etc.

MTPL-MCAS Eco is a multipurpose compressed air sampler

  • Initial pressure control through pressure gauge.
  • Flow adjustment through rota meter.
  • 2LPM rota meter supplied.
  • IQ/OQ Document.
  • Calibration certificate for pressure and flow.
  • MCAS is used with GASTEC Tube for gas detection in compressed Air/Nitrogen including CO, CO2, Oil mist, NO + NO2, SO2 etc.

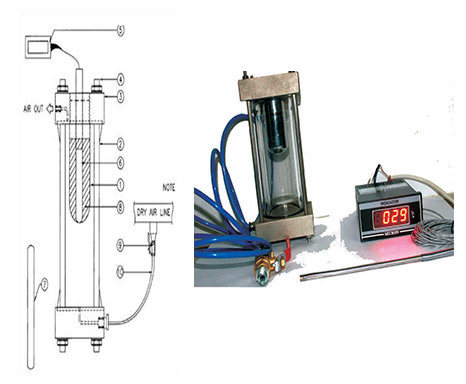

MTPL Dew Point

When Compressed air is dried in an air dryer, it is generally used for critical applications. It is therefore essential that the Dryness (moisture content) of the air be checked on regular basis. Most dryers guarantee aDew Point of- 40°C or below. This means that only if the air is cooled to that temperature, moisture will condense out of the air.

The Dew Point apparatus is a simple device which cools the compressed air and also provides visual indication of the Dew Point temperature. Dry air enters the glass body of the apparatus through a valve of the bottom. It swirls around the brightly polished chrome plated tube and exits to the atmosphere at the tip. Ether and dry ice is filled in the tube and the mixture is stirred with the help of a stirrer. The temperature of the tube is then measured by a low range temperature thermometer. The temperature of the tube is progressively lowered by periodic addition of dry ice to the mixture. When the tube temperature reaches the Dew Point temperature, moisture will condense on the brightly polished surface, making it cloudy. The temperature recorded at that time is the Dew Point temperature. As a precautionary measure, the test should be repeated for verification.

  • Chrome plated tube
  • Glass body
  • Flanges
  • Holding bolts
  • Temperature indicator
  • Temperature sensor
  • Stirrer rod
  • Dry ice + Ether/Acetone
  • Valve
  • Flexible hose

Note:

  • Dry Ice + Ether is required only at the time of test and is not supplied with the apparatus.
  • Flexible hose (2m long) with valve & fittings are supplied along with the apparatus.
  • ¼" BSPF conn. Is to be provided in the dry air/gas line for connecting the apparatus.
  • Overall dimensions: 125L x 80W x 150LG (without temperature indicator).
  • Temperature range Ambient to below -70°C.
